Water and Gas Funnels

PRODUCTION RANGES

•  OD : 17.2 mm - 114,3 mm
•  Thickness : 2 mm - 5,6 mm
•  Length : Standart 6 m. varies from 2.4 m to 12 m according to customer demands.


USAGE AREAS

• Training Tools and Materials
• White goods sector
• Heater systems
• Plumbings
• Constructions

TOLERANCE

•  Thickness : -%12,5 +%10 (Varies with respect to morms.)
•  Weight : ±%10 (Varies acc. to standarts.) - ±%7.5 (Varies acc. to standarts.)
•  Length : ±50 mm (Varies acc. to standarts.)
•  Welding : Line deviation from centre.

PRODUCTION STANDARTS

TS 301/ 1-2-3-4, TS 416, DIN 2440-2441, DIN 2458, DIN 1626, ISO 65, BS 1387, ASTM A-53, NFA 49-145, UNI 8863

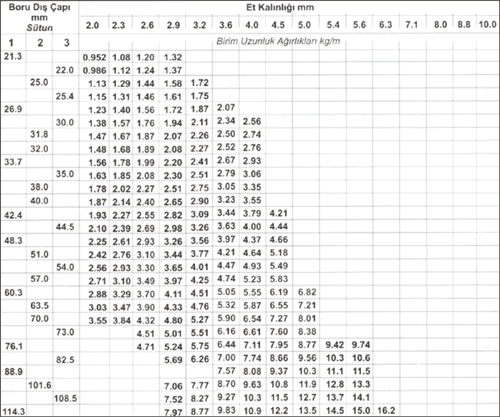

Click for DIN 2458 table.

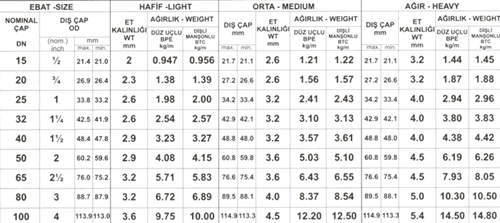

Click for BS 1387 table.

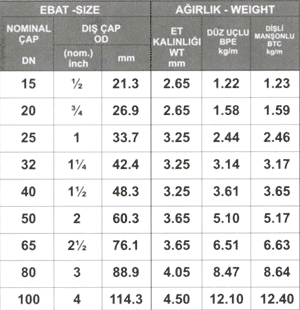

Click for DIN 2440 table.

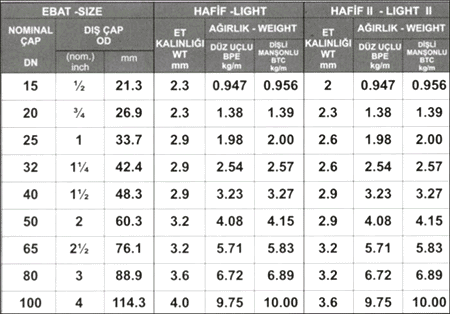

Click for ISO (1) 65 table.

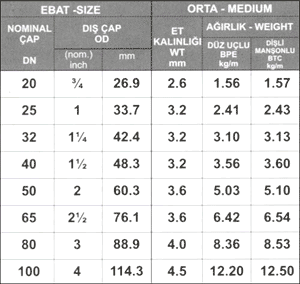

Click for ISO (2) 65 table.

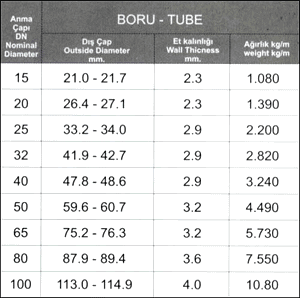

Click for TS301/1 Light -1 Series table.

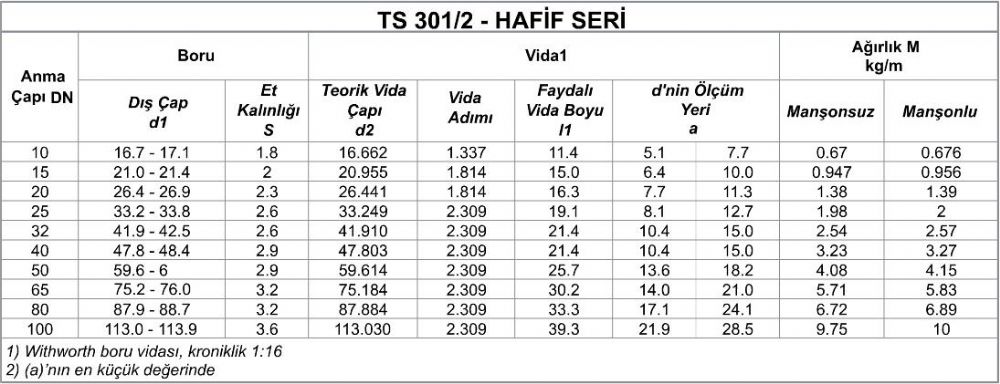

Click for TS301/2 Light -2 Series table.

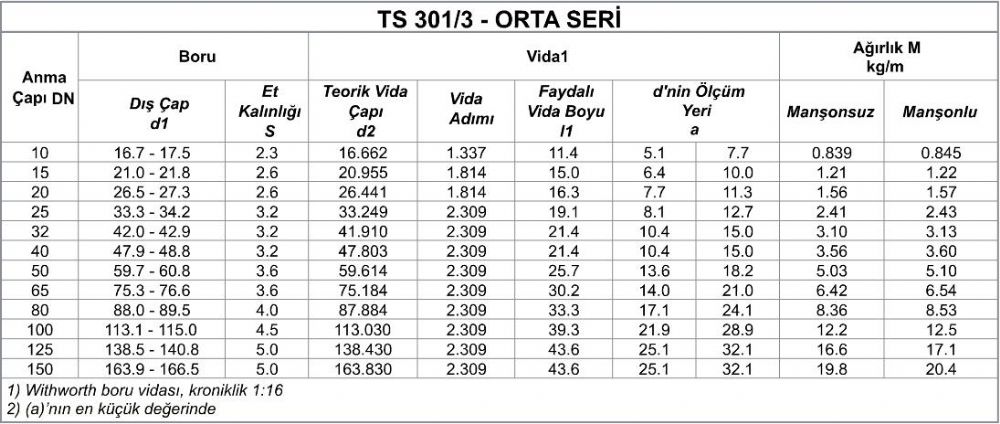

Click for TS301/3 Medium Series table.

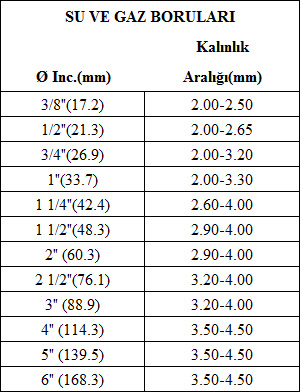

Click for "WATER & GAS PIPES table.
